TBOX Advanced Telecontrol - Low Power RTU - LP100 with 10 year autonomy on local batteries.

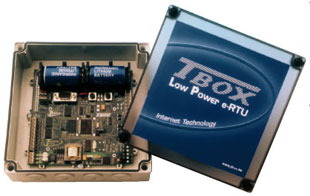

TBOX LP100

Ultra Low Power RTU

Techno Trade offers a low power RTU that is able to operate in environments where there is no power supply. Three models are available. LP100, LP200 and LP300 systems. With an extremely low consumption ( ULTRA low power ), LP100 and LP200 can operate on batteries for up to 10 years without any maintenance. While LP100 has digital inputs only, LP200 has several analog features also. Both systems operate on the standard PSTN communication line. Data are collected and stored into memory; the system dials up for database uploads or when alarms occur.

The technical specifications of LP100 are the following:

• Low power Datalogger and remote alarming system (« low power RTU »)

• 8 digital inputs dry contacts (0 to 12V compatible) for counting and flow measurement - acquisition frequency: 8 times per second. Maximum input voltage: 30 VDC

• Power Supply: internal lithium battery type C (3V6, 7.2 Ah) on support (delivered with one battery, possibility to add a second one) with lifetime expectancy of 5 to 10 years. Possibility of external power supply from 8 to 16 volts (standard with power requirement of 10mA). Sliding switch to disconnect battery when out of use

• Modem (auto powered) V22 and V22bis (possibility of V21 and V23 - optional) - TBR21 approval

• Internet compatibility: supports statistical reporting by email and FTP (2003)

• One RS232 port

• Two pushbuttons (Reset and PGM) and one LED (to indicate the functioning mode when PGM button is pressed)

• 16 bits Microcontroller with 256k bytes of flash and 20k bytes of internal RAM

• External Ram of 128 k bytes

• External Flash of 512k bytes

• SEEPROM of 32k bytes for recording customer data

• Battery voltage measurement (10 bits)

• Consumption in stand-by: 10 µA

• Real Time clock + watchdog

• Enclosure IP66 (EN60529), IK08 (EN50105)

• Dimension 180x180x60 mm (HxLxP) to be fixed by 4 points diameter 4,5mm.

• Weight: 600 gr.

• Working conditions: -20°C to +50°C

• Storage conditions: -20°C to +70°C

• Product reference: TBOX LP10
