TBOX-MS



TBOX MS is the ideal tool for all types of remote control and automation applications. The most recent of the products in the T-BOX range, MS has become the new reference in terms of functionalities and cost.

Equipped with the most powerful processors on the market, TBOX MS is the flagship of TBOX remote control solutions. It is the fruit of 15 years of experience in remote control and has the latest technologies. With a completely modular concept, TBOX MS has a powerful flexible architecture that can be quickly implemented.

Special attention has been paid to:

• Total modularity

• Resistance to interference and compliance with the most demanding standards

• Computing power

• Communication speed

• Memory capacity

• Ease of operation

• User-friendliness of its programming

• Security

The choice of a specifically developed, entirely metal (aluminium) proprietary structure, combined with multilayer PCBs and extremely exhaustive laboratory tests, enables TBOX MS to satisfy the strictest standards with regard to immunity to:

• Electromagnetic interference

• Vibrations

• Extreme temperatures

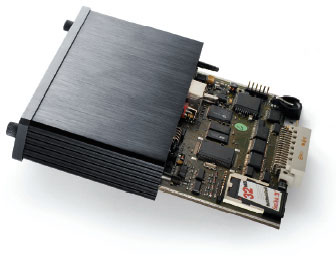

TBOX MS is a modular product based on a backplane rack architecture - available in diff erent sizes (5, 10 or 15) - in which different types of cards can be inserted: power supply, CPU, input/output cards, modems (PSTN, GSMGPRS, ISDN, etc), serial ports (RS232/RS485), Ethernet, GPS, etc. Each assembly can easily be connected on Ethernet, available as standard, or RS485 network, thereby providing complete topological flexibility.

The I/O cards support all standard industrial signals (digital inputs, relay outputs, 4-20 mA, 0-10V, temperature inputs, etc). Some cards also have inputs and outputs of different types to satisfy all space and cost constraints.

The racks are attached directly to a DIN rail or a 19” bay, without requiring special tools.
