TBOX-LITE

A telemetry project requiring hundreds of pieces of equipment with a similar configuration?

You are looking for an affordable -optimized - remote control solution for a large project?

Your area of activity requires an economic remote monitoring product with features specific to your business?

Your electrical cabinets only have very limited space for accommodating a telecontrol box?

TBOX-LITE is made for you !

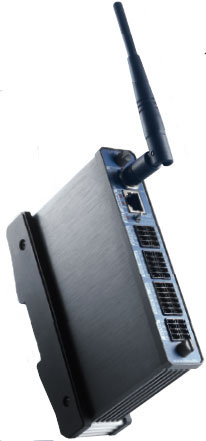

TBOX-LITE comprises all the power of TBOX concentrated into a compact industrial product. Available in different models, TBOX-LITE includes a specific and limited number of inputs/outputs and dedicated communication ports. With its small size and single-unit construction, TBOX-LITE easily fixes to a DIN rail.



TBOX Lite Brochure :


TBOX- LITE range comparison chart
Reference COM1 COM2 COM3 COM4 DI DO Relays Dig In orOut AI Temp Input AO Counters battery charger PDF
TBOX LITE LT-200-E - Ethernet RS232 RS485 - 4 8 6 2 0 2 yes
TBOX LITE LT-200-PE PSTN 56K Ethernet RS232 RS485 - 4 8 6 2 0 2 yes
TBOX LITE LT-200-GE GSM/GPRS Ethernet RS232 RS485 - 4 8 6 2 0 2 yes
TBOX LITE LT-201-E - Ethernet RS232 RS485 - 4 8 2 6 0 2 yes
TBOX LITE LT-201-PE PSTN 56K Ethernet RS232 RS485 - 4 8 2 6 0 2 yes
TBOX LITE LT-201-GE GSM/GPRS Ethernet RS232 RS485 - 4 8 2 6 0 2 yes
TBOX LITE LT-300-E - Ethernet RS232 RS485 4 0 16 8 0 2 2 yes
TBOX LITE LT-300-PE PSTN 56K Ethernet RS232 RS485 4 0 16 8 0 2 2 yes
TBOX LITE LT-300-GE GSM/GPRS Ethernet RS232 RS485 4 0 16 8 0 2 2 yes



Some of the TBOX LITE versions available:

LT-201-PE features:

  • 2 counter inputs (250 Hz -10 to 35 VDC)
    8 digital inputs or outputs - no isolation/no protection (10 to 35 VDC)
    2 analog inputs 0/2mA, 12 bits not isolated, passives, no protection
    6 temperature inputs (Pt1000)
    4 relays outputs (230Vac 3A)
  • COM1: PSTN 56Kb modem
    COM2: RS232 2 wires (Rx/Tx)
    COM3: RS485 Port, 2 wires, up to 115 KBaud
    COM4: Ethernet 10/100BaseT - RJ45
  • Power supply 20..30VDC with internal battery charger

LT-200-GE features:

  • 2 counter inputs
    8 digital inputs or outputs - no isolation/no protection
    6 analog inputs 4/20mA, 12 bits not isolated, passives, no protection
    2 temperature inputs (Pt1000)
    4 relays outputs (230Vac 3A)
  • COM1: embedded GSM/GPRS (SMA connector)
    COM2: RS232 2 wires (Rx/Tx)
    COM3: RS485 Port, 2 wires, up to 115 KBaud
    COM4: Ethernet 10/100BaseT - RJ45
  • Power supply 20..30VDC with internal battery charger
